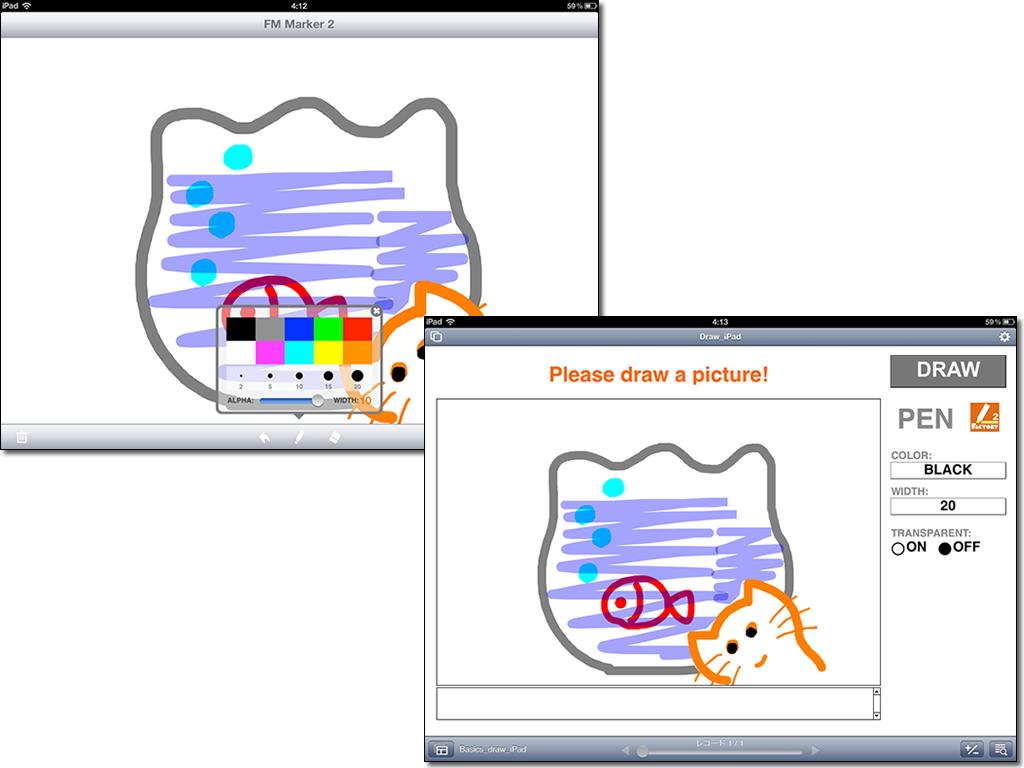

FM Marker 2 is an application using an image stored by the container Field of FileMaker Go 12~19 as the groundwork and you can mark with your handwritten signature or freehand.
FM Marker 2 starts automatically from your existing databases of FileMaker Go 12~19 by tapping a button.
You can mark and run a script of FileMarker Go by freehand on FM Marker 2.

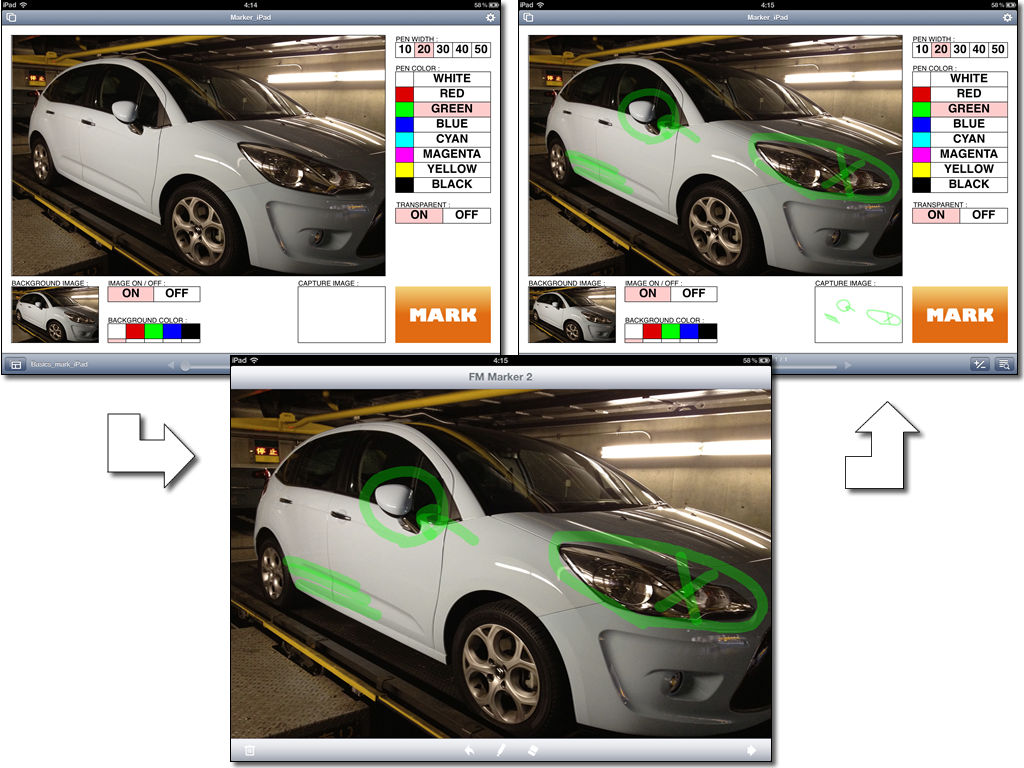

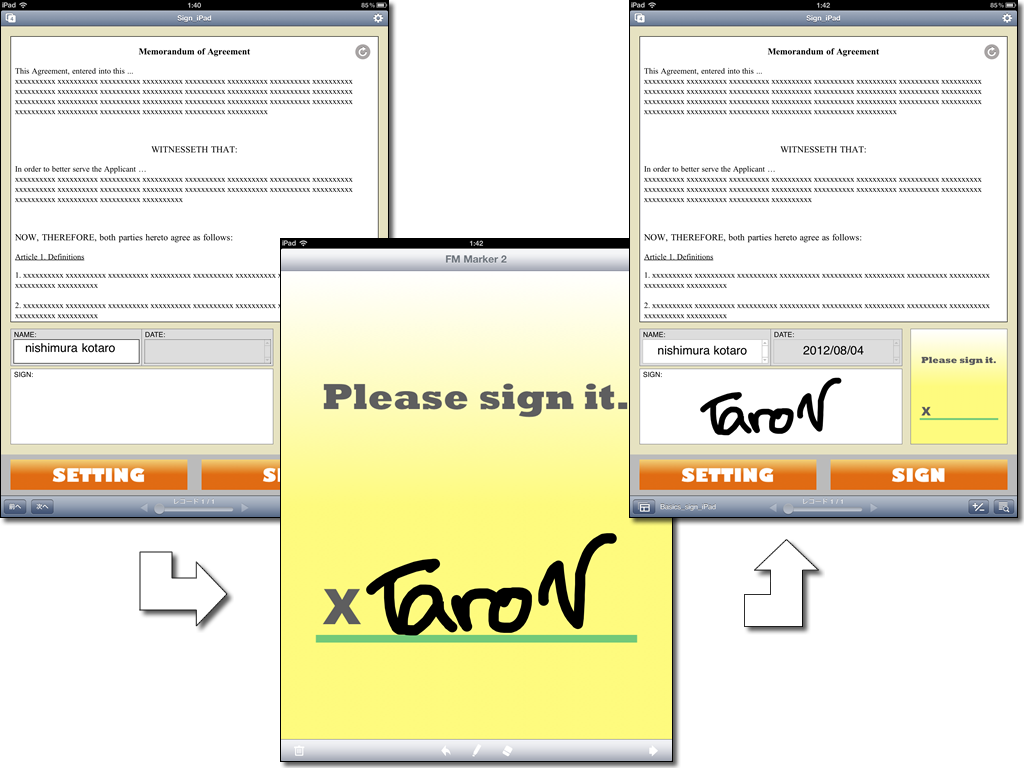

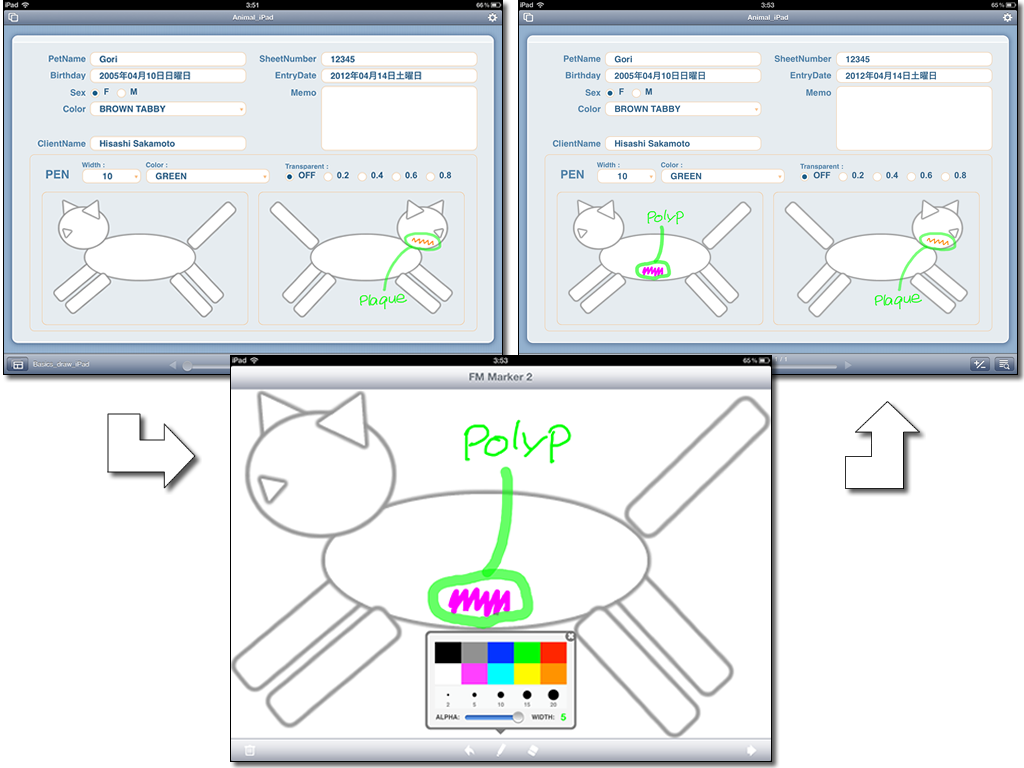

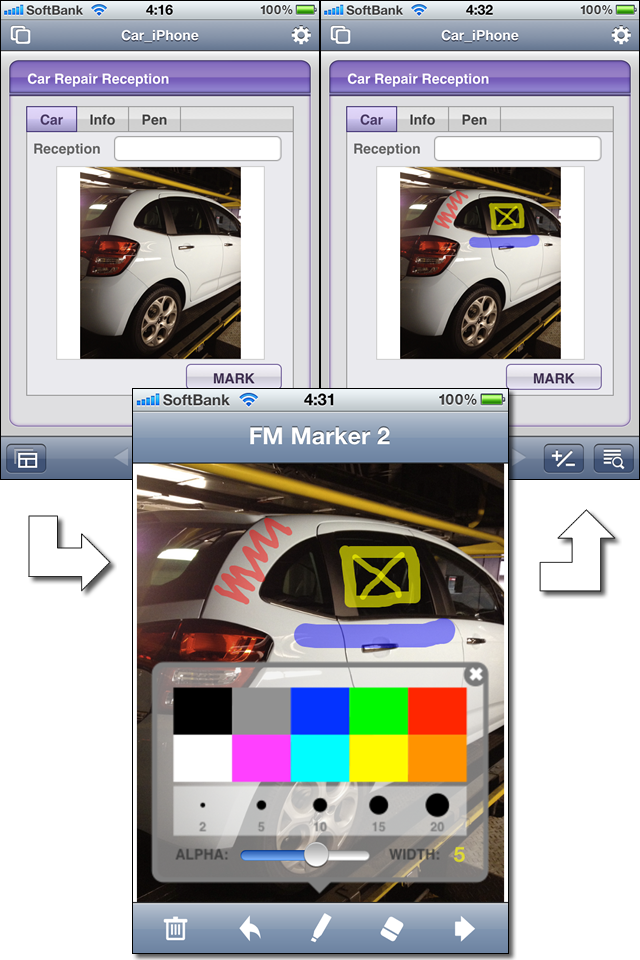

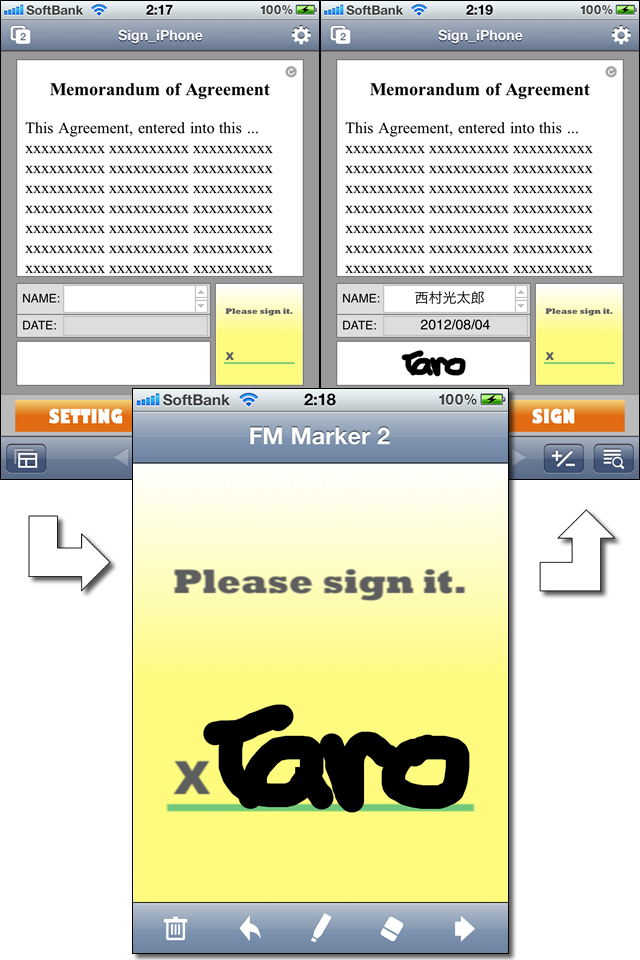

You can use it for various tasks such as for systems that require a handwritten confirmation signature or marking applicable points for an image.
* FM Marker 2 is an application to work together with FileMaker© Go 12-19

Menu

• Product Features
• ver.1.1.5
• ver.1.1.2
• ver.1.1.1
• ver.1.1.0
• Note
• factory+fmmarker2:// URL Scheme
• Capturing Sign with factory+fmmarker2://capture
• Example
• Requirements
• App Store and Price
• Download FileMaker Go Sample Template

Product Features

• An image stored by the container field of FileMaker Go 12~19 as the groundwork and you can mark with your handwritten signature or freehand.

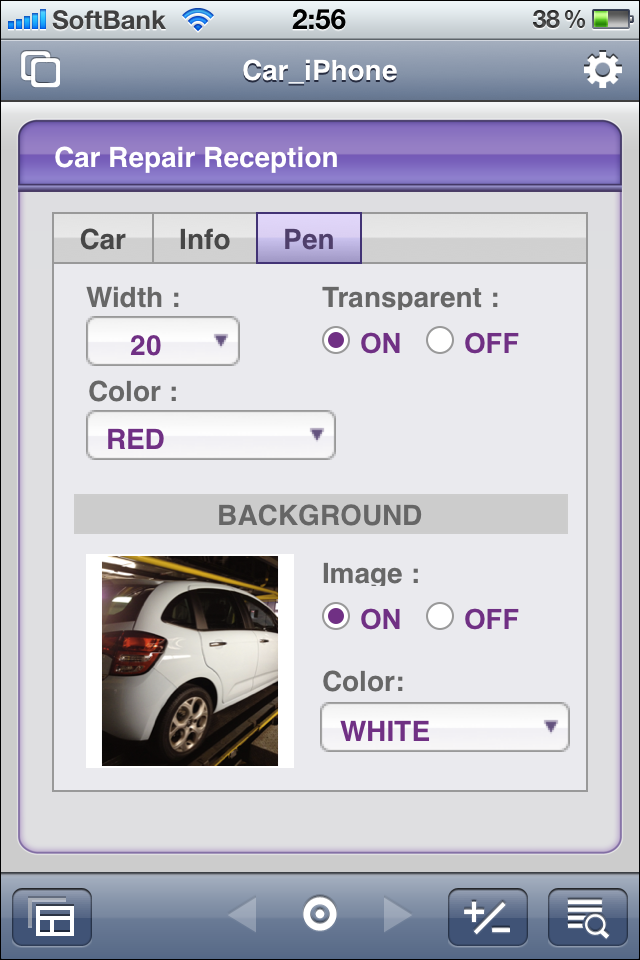

• Set marker size and a color from FileMaker Go 12~19.
• Set the transparency of the marker.
• Import a whole screen or just a drawing part to the container field of FileMaker.
• Open a shared, remote FileMaker Pro file.
• Specify the account and password in a shared, remote FileMaker Pro file.
• Passing parameters to the script.

ver.1.1.5

• iOS 9 or later

ver.1.1.2

• iOS 7 compatibility fix

ver.1.1.1

• Support for iPhone 5

ver.1.1.0

• A palette was added. It's possible to choose the color of the pen, the thickness and the transparency directly.
• ERASER function was added.
• UNDO function was added.
• DONE button and ERASE button will be indication only of an icon. The parameter which specifies the name of 'donebutton' and 'erasebutton' is deleted.

Note

• FM Marker 2 is an application to work together with FileMaker© Go 12~19.
• FM Marker 2 can not be used alone.

factory+fmmarker2:// URL Scheme

You can launch FM Marker 2 from a database file of FileMaker Go 12~19 using the factory+fmmarker2:// URL Scheme.
After having marked it on FM Marker 2, By tapping launch button in the screen lower right, it is stored a clipboard, and the data which you marked in FM Marker 2 are carried to FileMaker Go 12~19.

Capturing Sign with factory+fmmarker2://capture

Use the 'capture' action to launch FM Marker 2 and capture a mark data.
The format of the factory+fmmarker2://capture URL is as follows (items in square brackets are optional):

factory+fmmarker2://capture?
<parameter name>=<parameter value>
[&<parameter name>=<parameter value>
[&…]]

The parameter names and possible values are defined below.

• 'fmdb' parameter - The name of database file
• 'fmscript' parameter - The name of script
• 'penwidth' parameter - The size of the pen
• 'pencolor' parameter - The color of the pen … The following RGBA(RGB+A, A means alpha channel) level are available:
  '1,0,0'(Red), '1,0.5,0'(Orange), '1,1,0,0.3'(Yellow+Alfa), '0.5,0.3'(Gray+Alfa)
• 'bounds' parameter - Range specification of the area that stroked … The following range names are available: 'stroke' 'whole'
• The size of 'whole' differs depending on the type of iPad or iPhone.
  • iPad 9.7-inch _ Portrait: 1536 x 1820 / Landscape: 2048 x 1308
  • iPad 11-inch _ Portrait: 1668 x 2151 / Landscape: 2388 x 1432
  • iPhone 5.8-inch _ Portrait: 750 x 1360 / Landscape: 1624 x 598
• 'background' parameter - Placement of the background image … The following background image are available: 'clipboard'
• 'backgroundcolor' parameter - The color of the background … This is the same as setting of 'pencolor'
• 'donebutton' parameter - The name of the button to launch FileMaker Go 12~19
• 'erasebutton' parameter - The name of the button to erase a mark

Example

In FM Marker 2, Placement of background image and appoint 20 points of red pens and appoint the MarkPaste script of the Marker.fmp12 database in FileMaker Go 12~19 after marking. The return value is the whole writable area.

factory+fmmarker2://capture?
fmdb=Marker.fmp12
&script=MarkPaste
&penwidth=20
&pencolor=1,0,0
&background=clipboard
&bouns=whole
&donebutton=DONE
&erasebutton=ERASE

Requirements

• FileMaker Go 12~19
  • for iPhone and iPad：FileMaker© Go 12~19
• iOS
  • 9〜13

App Store

Download FileMaker Go Sample Template

• go FM Marker 2 Support
